Description

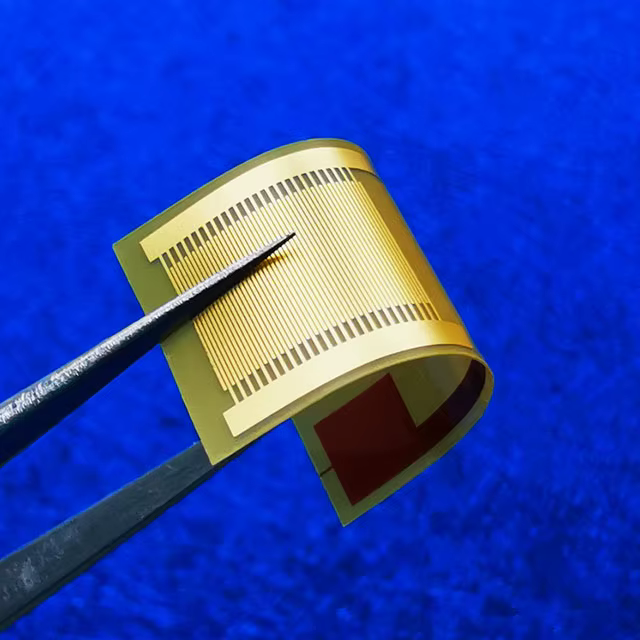

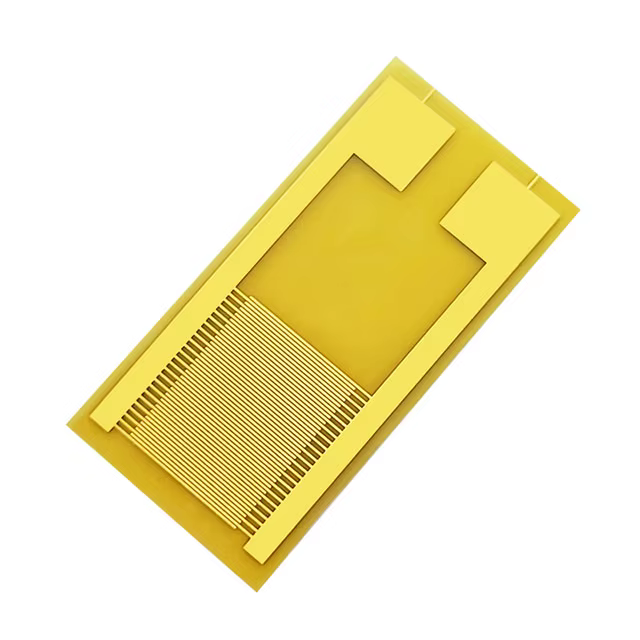

Substrate: Polyimide PI Substrate (Flexible)

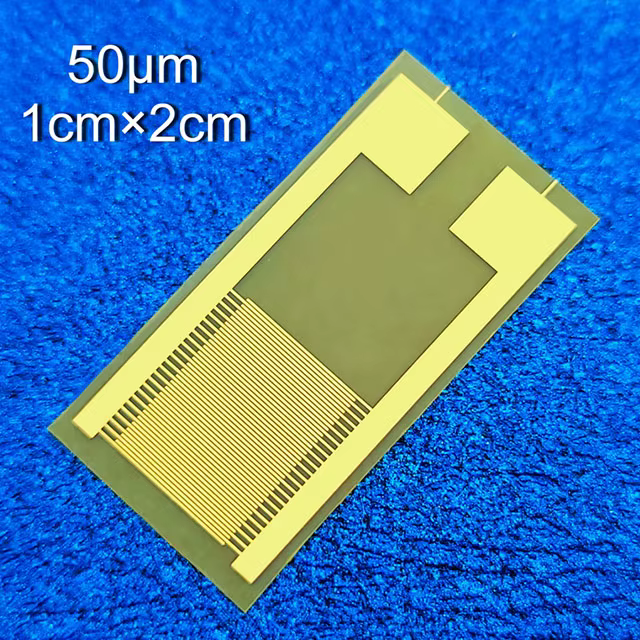

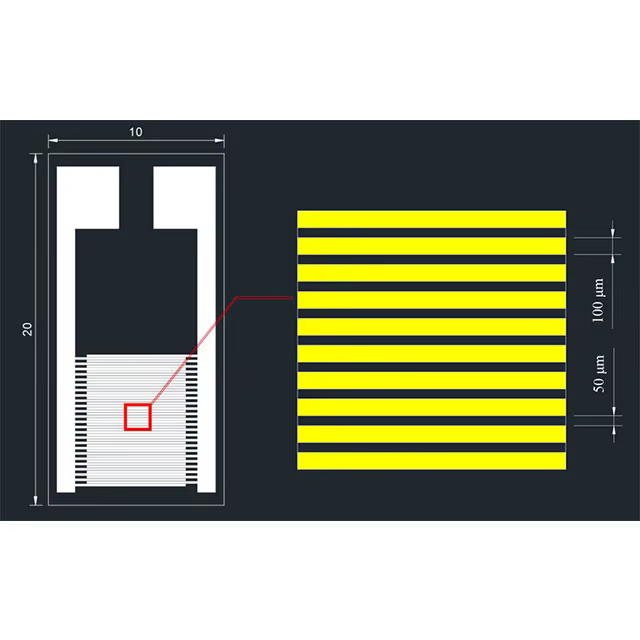

Dimensions: 20 mm x 10 mm
Line width: 100 μm
Line Gap: 50 μm
Finger length:6.3 mm
Number of Fingers: 25 Pairs (50 Fingers)
Metal layer structure: Cu/Ni/Au,thickness 12um/3um/1um
Temperature range for electrode use: -50 degrees to 120 degrees C
