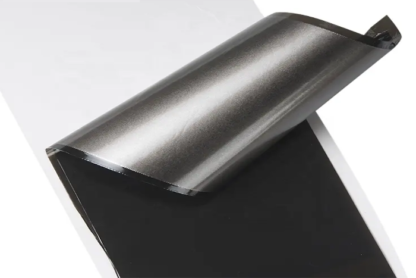

Pyrolytic Graphite Sheet (PGS) (200 mm x 300 mm), Thickness 70 μm

1239.00

Share with:



Pyrolytic Graphite Sheet (PGS)
Price 1050+18%GST = 1239 INR
HSN: 38011000
Product details are given below

16 in stock

Description

Purity(Carbon Content) > 99.9%
Size 200 mm x 300 mm
Thickness: 70±7 micrometer

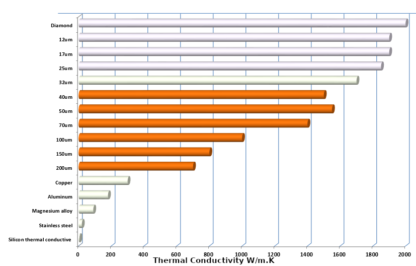

Thermal conductivity (X-Y axis W/m.k): 1100~1300
Thermal conductivity (Z axis W/m.k): 15~20
In-plane thermal diffusivity (mm2/s): 760~900
Density (g/cm3): 1.70±0.1
Heat capacity (J/g/K ): 0.85±0.01
Sheet Resistance (Ohm/sq): ~1.6 x 10-2
Operation temperature (°C):-40~400
Bending (angle180, R5): 20000
